Incito Preamplifier

Along with our Newest Prestige line power amps, came the need for a high-performance preamp to suit the quality of our new tube amplifiers while keeping the cost and size to manageable levels. Our newest preamplifier was developed for some years now but never had the chance to be consumer ready. Finally, the Incito preamplifier is launched.

We took a great Einstein’s quote, “Make everything as simple as possible, but not simpler”, and absorbed it in our current audio design mentality. Simple circuits always work and most important, sound much better. However, simple solutions come with many shortcomings. Especially in audio, this comes in the form of questionable measuring performance.

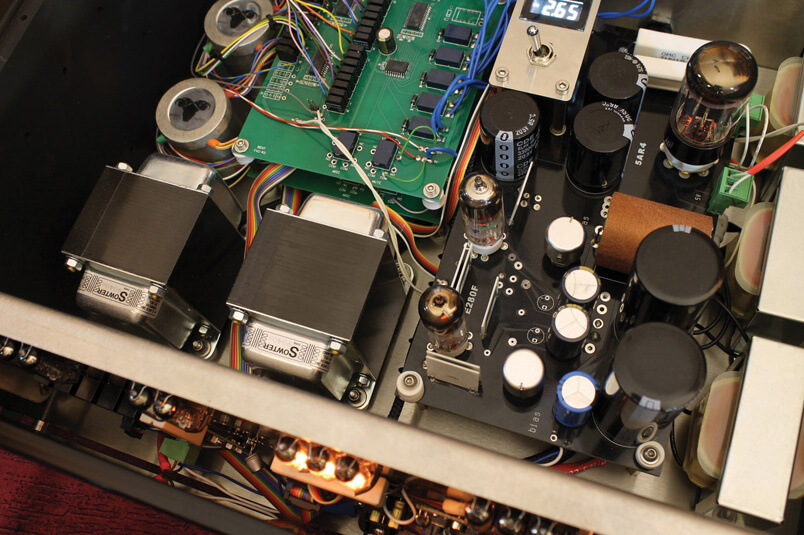

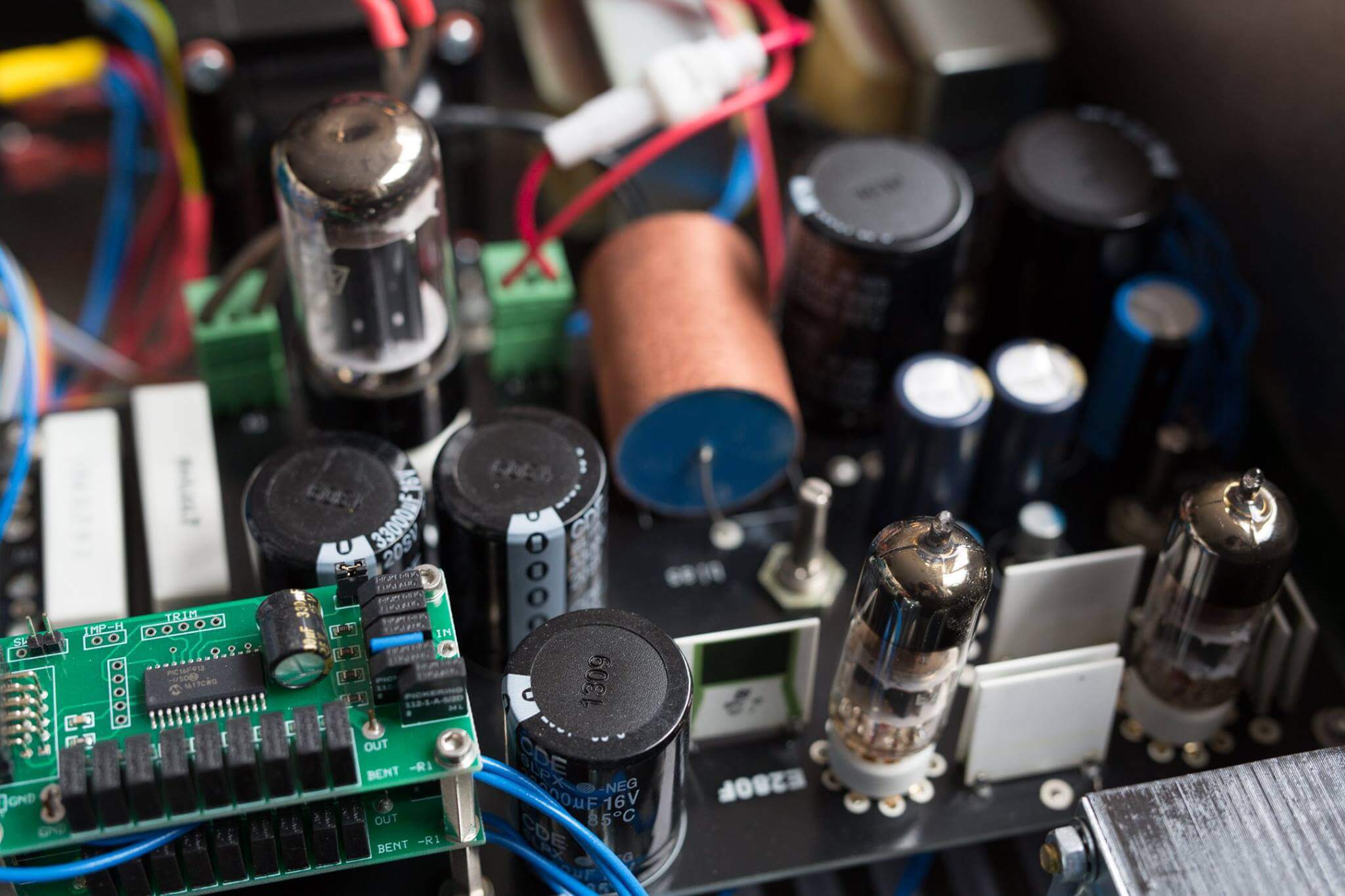

This is not the case with the Incito preamplifier. The heart of the Incito preamplifier is a zero feedback power gain stage, which is consisted of a transformer-coupled super-triode, using the ultra high trans-conductance E280F which was only made by Siemens. This superb tube is loaded with the highest quality step down transformer. Measuring data speak for themselves for this highest quality combination. Voltage swings of over 320V are an easy task for the power stage and are stepped down to 80Vpp while keeping transistor-like noise figures. Our step-down transformer provides very low output resistance and more than adequate current to drive any load down to 250 ohms!
The power supply is built around the 5AR4 rectifier, with separate double pi filtering for each channel, using oversized chokes, and high-speed capacitors, along with an ultra-low noise adjustable bias supply.
A high quality discrete relay-latched-resistor attenuator is used, accompanied with supreme quality signal relays. True balanced outputs are standard, and all inputs are custom configurable.



Along with our Newest Prestige line power amps, came the need for a high-performance preamp to suit the quality of our new tube amplifiers while keeping the cost and size to manageable levels. Our newest preamplifier was developed for some years now but never had the chance to be consumer ready. Finally, the Incito preamplifier is launched.

We took a great Einstein’s quote, “Make everything as simple as possible, but not simpler”, and absorbed it in our current audio design mentality. Simple circuits always work and most important, sound much better. However, simple solutions come with many shortcomings. Especially in audio, this comes in the form of questionable measuring performance.
This is not the case with the Incito preamplifier. The heart of the Incito preamplifier is a zero feedback power gain stage, which is consisted of a transformer-coupled super-triode, using the ultra high trans-conductance E280F which was only made by Siemens. This superb tube is loaded with the highest quality step down transformer. Measuring data speak for themselves for this highest quality combination. Voltage swings of over 320V are an easy task for the power stage and are stepped down to 80Vpp while keeping transistor-like noise figures. Our step-down transformer provides very low output resistance and more than adequate current to drive any load down to 250 ohms!
The power supply is built around the 5AR4 rectifier, with separate double pi filtering for each channel, using oversized chokes, and high-speed capacitors, along with an ultra-low noise adjustable bias supply.
A high quality discrete relay-latched-resistor attenuator is used, accompanied with supreme quality signal relays. True balanced outputs are standard, and all inputs are custom configurable.



Category:

Description

Specifications

Full swing signal bandwidth// -6db @ 4Hz~100kHz

Maximum signal output swing// 32Vrms @ 10kohm load

Gain// 20db/14db selectable

Output impedance// <50ohm

Harmonic distortion// 0.005% typical

Maximum harmonic distortion// less than 0.1% THD at 20V rms

Weight// 33Kg unpacked

Dimentions WxDxH// 480mm X 320mm X 165mm
