* 20 R2R converters per channel, complimentary current output
(using the top grade AD1865N-K, 10 converters per bank, 20 per channel,40 in total)
* Eight discrete ultra-low-noise regulators
(for the 4 converter banks)
*Extensive local decoupling, using tuned LC filters
*Overengineered power supplies, power input filters
*4 toroidal transformers, over 2Farad total system capacitance, wideband local decoupling
* Transformer I/V conversion
(custom wideband transformers, balanced current to SE voltage conversion)
* Internal Super-Clock
(bypassable on the fly. Separate toroidal transformer, triple regulated supply)
*Transformer loaded super tube output stage
(using the E280F tube. 5:1 step down transformer, double choke filtered supply)
*Xenon gas rectifiers for the tube PSUs
30Vpp output @ 0db
– Balanced output(optional)

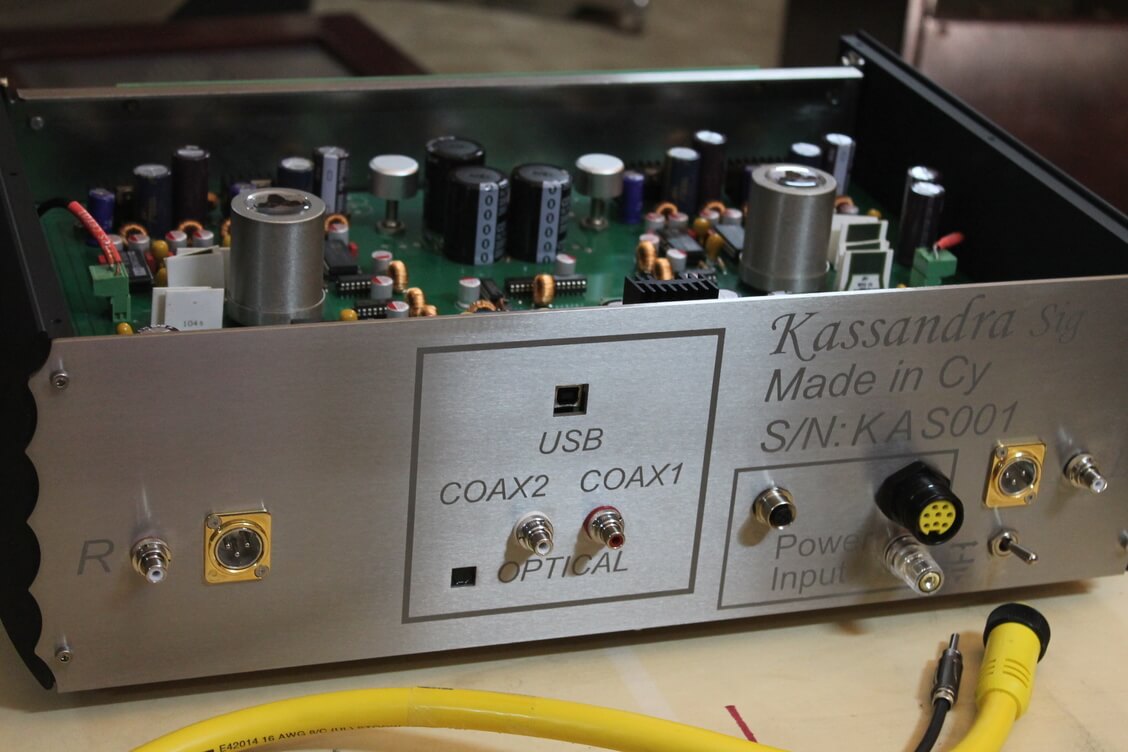

– USB input up to 24/384KHz
– Jitter attenuation down to femptosec level
– Output impendance ~40ohms (balanced output)

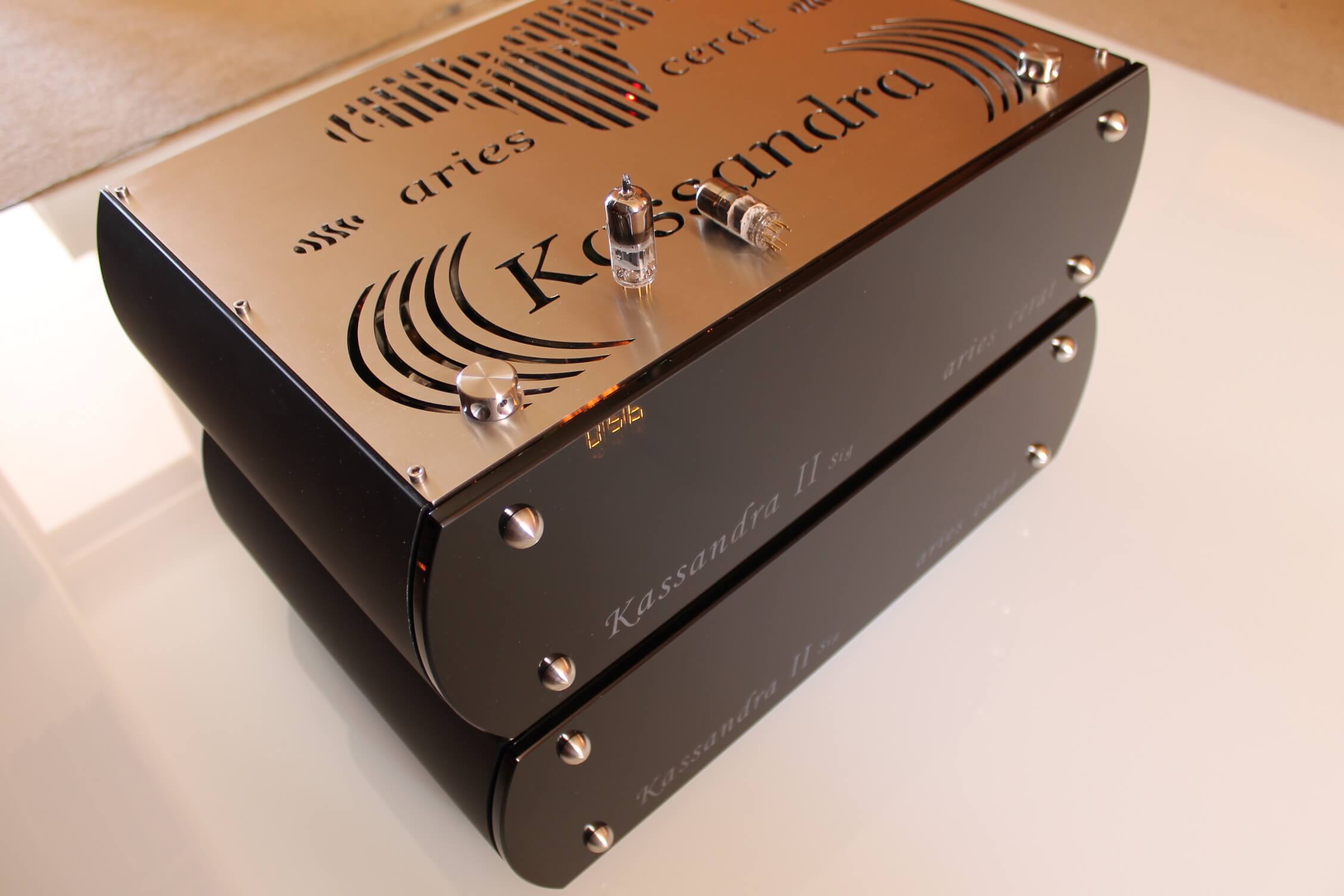

Dimensions// 2 chassis 540mmW X 350mmD X 165mmH each
Weight// 80kg total
